Retractable Roof / Pergola

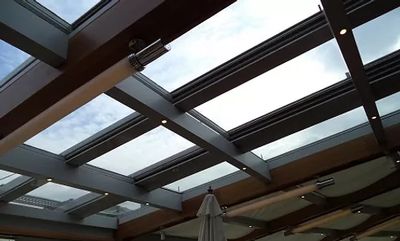

Glass Glazed Retractable Roof
Width: The axial width is max. 48" for 3/16"+3/16" laminated glass glazed retractable roofs; max 64" for (1/4" tempered+2/3" H.H.+5/32"+5/32" or 3/16"+3/16" laminated glass) double glass glazed 64". Total width of the system is unlimited.
Projection: Max. 20' in laminated glass glazed; Max 26' in double-glass glazed retractable roofs.
Construction: Load-bearing construction consists of 6063 T-66 Aluminum profiles. Steel profiles at least 5/32" thickness are used when necessary.
Covering Material: 5/32"+5/32" laminated glass is used in laminated glass glazed; (1/4" tempered+1/4" H.H.+5/32"+5/32" or 5/32"+5/32" laminated glass) is used in double glass glazed retractable roofs.
Traction: Tubular motors or geared electrical motors are used for traction. 5/16" rpp polyurethane trigger belts and aluminum pulleys are used for triggering.

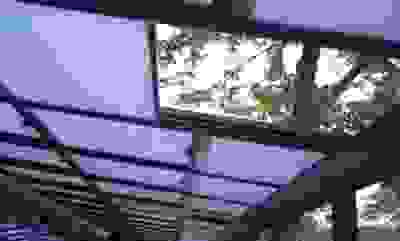

Polycarbonate Sheet Covered Retractable Roof
Width: The axial width is max. 42" in 5/8" hollow polycarbonate sheet covered retractable roofs; max. 48" in 1-1/4" hollow polycarbonate sheet covered retractable roofs. Total width of the system is unlimited.
Projection: Max 26' in both models.
Construction: Load-bearing construction consists of 6063 T-66 Aluminum profiles. Steel profiles at least 5/32" thickness are used when necessary.
Covering Material: 5/8" and 1-1/4" polycarbonate hollex sheet.
Traction: Tubular motors or geared electrical motors are used for traction. 5/16" rpp polyurethane trigger belts and aluminum pulleys are used for triggering.

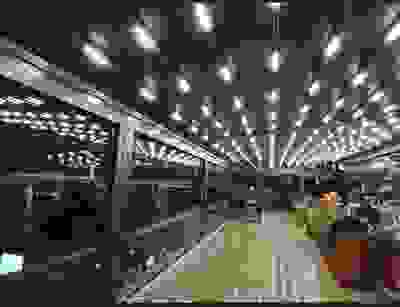

Retractable Roof Covered with misc. Materials
Width: Axial with changes according to the covering material. Total width of the system is unlimited.
Projection: Changes according to the covering material.
Construction: Load-bearing construction consists of 6063 T-66 Aluminum profiles. Steel profiles at least 5/32" thickness are used when necessary.
Covering Material: 1-1/4" water-resistant wooden sheet covered with sound-proof textile or 1-1/4" honeycomb.
Traction: Tubular motors or geared electrical motors are used for traction. 5/16" rpp polyurethane trigger belts and aluminum pulleys are used for triggering.

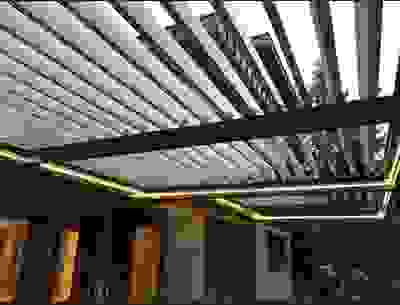

Bioclimatic Pergolas
Width: In one axial systems the width is 10'. In multi axial systems the width is 10'.
Projection: 20'.
Load-bearing construction: 6063 T-66 aluminum profile.
Covering Material: Polyurethane foam filled aluminum profile.
Traction: The main traction is done by the gear motors. The angle traction is done by the strokes.
